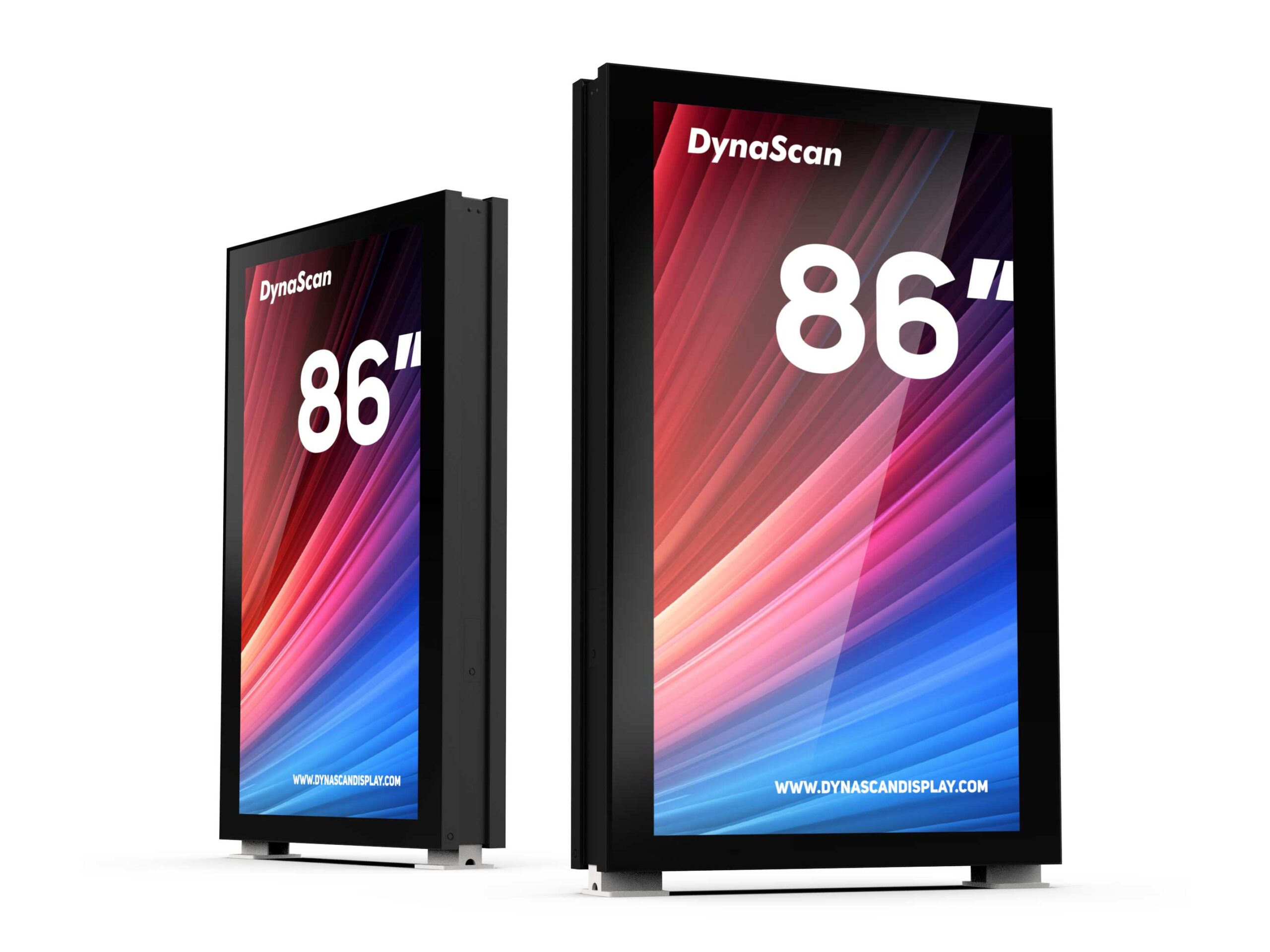

DynaScan DK862DR4 86" 3500 nits 4K UHD Dual-Sided Outdoor Kiosk

DK862DR4

"

DISPLAY SIZE

VIEW ANGLE

"84.7 / 112.2 / 134.4 / 134.4 mm (T/B/L/R)

BEZEL WIDTH

"

DISPLAY SIZE

  • ​​​​​​​LCD Panel Size: 85.6″ inches LCD (x2)
  • ​​​​​​​Native Resolution: 3840 x 2160
  • ​​​​​​​Brightness: 3500 nits
  • ​​​​​​​Light Lifetime (Typ.): 100,000 hrs
  • ​​​​​​​Contrast Ratio: 1100:1
  • ​​​​​​​Color Depth: 10 bits
  • ​​​​​​​Viewing Angle (H/V): 178° / 178°
  • ​​​​​​​Polarized Sunglasses Support: Yes

  • ​​​​​​​Power Supply: Internal
  • ​​​​​​​Rated Voltage: 200-240 V
  • ​​​​​​​Power Consumption (Typ./Max.): 945 W / 2470 W

  • ​​​​​​​Bezel Width (T/B/L/R): 84.7 / 112.2 / 134.4 / 134.4 mm
  • ​​​​​​​Cabinet Color: Black
  • ​​​​​​​Dimension (WxHxD, w/o stand): 1338.0 x 2100.0 x 250.0 mm
  • ​​​​​​​Weight: 456 kg
  • ​​​​​​​Orientation: Portrait
  • ​​​​​​​Reserved Space for Optional Player: Yes

  • ​​​​​​​Language: English
  • ​​​​​​​Support SNMP (Up to V3.0): Yes
  • ​​​​​​​Local Dimming Control: Yes
  • ​​​​​​​Ambient Light Sensor: Yes
  • ​​​​​​​Power On/Off Scheduling: Yes
  • ​​​​​​​Internal Temperature Sensor: Yes
  • ​​​​​​​Backup Player Built-in: Yes

  • ​​​​​​​HDMI 2.1 (HDCP 2.3): x6 (2160p)
  • ​​​​​​​USB 3.0: x2
  • ​​​​​​​Micro SD Slot: x2

  • ​​​​​​​Audio: x2

  • ​​​​​​​RS-232: In x2
  • ​​​​​​​RJ-45: x4 (LAN)

  • ​​​​​​​Operating System: Android 11.0
  • ​​​​​​​Processor: Cortex-A73
  • ​​​​​​​Clock Speed: 1.8 GHz
  • ​​​​​​​Main Memory Interface: DDR4, 4G
  • ​​​​​​​Graphics: Mali-G52
  • ​​​​​​​Storage: 16 GB eMMC Flash External: Support Micro SD , Up to 128 GB(FAT32/NTFS)
  • ​​​​​​​Multimedia: 4K 10 bits VP9/H265/H264 video decoders, up to 60 fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

  • ​​​​​​​Operating Temperature: -30°~50° C
  • ​​​​​​​Humidity: 5% ~ 95% RH Non-condensing
  • ​​​​​​​Environmental Rating: IP56 / IK10 / ASTM G155

  • ​​​​​​​CE / CB / FCC / PSE / VCCI / RoHS / AS / NZS

  • ​​​​​​​P-Cap touch, High Security Lock, SDM DSB-1135L, Stand Kit

DISPLAY

Aspect Ratio

16:9

Resolution

3840×2160 (4K UHD)

Backlight

Brightness / Luminance

3500 nits

Contrast

1100:1

Display Colour

10-bit

Viewing Angle (H/V)

Refresh Rate

60Hz

SIGNALS

Input

HDMI 2.1 x6 (2160p), USB 3.0 x2, Micro SD x2, RS-232 In x2, RJ-45 x4 (LAN), Audio Out x2

Audio

Output

GENERAL

Power Supply

,

Consumption Standard

)

Netweight

Gross Weight

Wall Mount

Dimension without stand (W×H×D)

)

Package(W×H×D)

)

ENVIRONMENT

Operating Temperature

Operating Humidity
