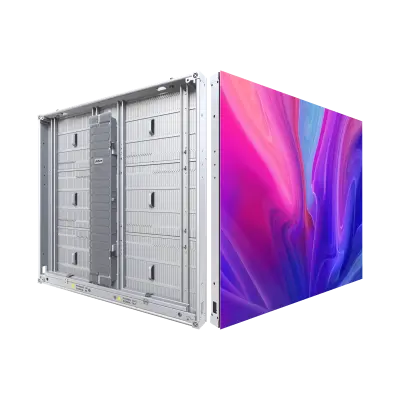

Features：
• Seamless splicing, complete picture shown
• Standardized module size, lightweight, easy to install
• Uniform and beautiful colour with strong stereoscopic sense
• High luminous intensity, the display content is clear when the sun irradiates directly on the screen
• 100,000 hours lifespan, low maintenance cost
DISPLAY SIZE
VIEW ANGLE
BEZEL WIDTH
DISPLAY SIZE
| Specification | Details | Specification | Details |
|---|---|---|---|
| Model | DHI‑PHGOA5‑PH | Parameters | |
| Parameters | |||
| Pixel Pitch | 5.71 mm | Pixel Configuration | 1R1G1B |
| LED Type | SMD2727 | Brightness (Max) | 6000 nit |
| Color Temperature | 3500 K – 10000 K (adjustable) | Viewing Angle | H160° / V90° |
| Pixel Density | 30,625 dots/m² | Module Size | 480 × 320 mm |

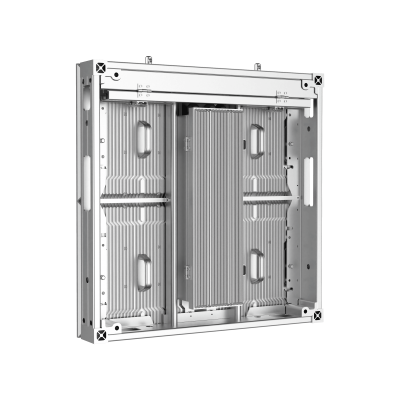

| Module Resolution | 84 × 56 dots | Cabinet Size | W960 × H960 × D85 mm |
| Cabinet Resolution | 168 × 168 dots | Cabinet Weight | 28 kg ± 0.5 |
| Cabinet Material | Aluminium Alloy | Operating Temp/Humidity | –40 ℃ to +60 ℃ / 10–80 % RH |
| Storage Temp/Humidity | –40 ℃ to +60 ℃ / 10–80 % RH | IP Rating | Front IP68 / Rear IP66 |
| Aspect Ratio | 1:1 | Gray Scale (Max) | 14 bits |
| Contrast Ratio | 6000:1 | Refresh Rate (Max) | 3840 Hz |
| Input Voltage | AC 110–220 V (± 10 %) | Input Power (Max) | 550 W/m² |
| Input Power (Avg) | 150 W/m² | Installation | Wall Mounted / Floor Mounted |
| Maintenance | Front & Rear Maintenance | Lamp Lifespan | ≥ 100,000 H |
| Signal Transmission Distance |
CAT5 (≤ 100 m) Multi‑mode fiber (≤ 300 m) Single‑mode fiber (≤ 10 km) |
||
DISPLAY
Aspect Ratio
16:9
Resolution
1920 × 1080 (FHD)
Backlight
Brightness / Luminance
200 cd/㎡
Contrast
58.33402778
Display Colour
16.7M(8bit)
Viewing Angle (H/V)
178°(H)/178°(V)
Refresh Rate
60Hz
SIGNALS
Input
VGA(D-Sub)×1, HDMI×1, USB×1
Audio
Yes
Output
Speaker 8W×2
GENERAL
Power Supply
AC100~240V (+/-10%), 50/60 Hz, AC100~240V (+/-10%), 50/60 Hz
Consumption Standard
)
Netweight
3.9kg (8.6lb)
Gross Weight
5.1kg (11.2lb)
Wall Mount
75×75mm (3.0"×3.0")
Dimension without stand (W×H×D)
)
Package(W×H×D)
)
ENVIRONMENT
Operating Temperature
0℃~40℃ (32°F~104°F)
Operating Humidity
10%~85%
